发明人：Mario Pasichinskyj
主要审查员：Kristine Peckman
当前的美国分类：323/362;323/330;324 / 117.00R;336/110;505/879.
国际分类：G05F 700
Patent number: 4904926
Filing date: Sep 14, 1988
Issue date: Feb 27, 1990
磁动作发电机包括电绕组，电绕组限定磁导电区域，该磁导电区域在每个端部处具有碱基，包括用于从其中诱导电流的元件。该发电机还包括两个极磁体，每个磁极磁体具有第一和第二极，每个第一极与磁导电区域的一个底座磁通。发电机还包括第三极磁体，由两个极电磁铁的第一极的第一极磁体和与电磁铁的磁通，第三极磁体具有基本上横向于磁导电区域的轴线的磁性通信，具有最靠近导电区的极端的第三磁体和与两个极电磁铁的第一极的磁性有吸引力关系，其中第一极是杆状的。还包括在发电机中的进一步包括用于循环反转电磁铁的磁极性的元件。所述反转装置通过电磁铁的磁极性的循环变化将导致与电磁铁的第一极之间的磁性有吸引力相关联的磁通量线和第三磁体的最近杆相应地相反，导致擦拭在磁导电区效果，作为两个电磁铁的各个第一极之间的磁通量摆动，从而在绕组内诱导电子移动，从而产生绕组内的电流流动。
索赔
- 1. An electrical generator, comprising:
- 电绕组限定磁导电区域，其在其每个端部处具有碱基，所述绕组包括用于从其中除去感应电流的装置;
- two pole electromagnets, each having a first and a second pole, each first pole thereof in magnetic communication with one base of said magnetically conductive zone;
- a third pole magnet, said magnet comprising a permanent magnet, said third magnet oriented intermediately of said first poles of said two pole electromagnets and in magnetic communication with said electromagnets, said third pole magnet having a magnetic axis substantially transverse to an axis of said magnetically conductive zone, said third magnet having a pole thereof nearest to said zone and in magnetic attractive relationship to said first poles of said two pole electromagnets, in which said first poles thereof are like poles;
- control means for cyclically reversing the magnetic polarities of said electromagnets,
- whereby said control means, through said cyclical change in said magnetic polarities of said electromagnets, will cause magnetic flux lines associated with said attractive magnetic relationship between said first poles of said electromagnets and said nearest pole of said third magnet to correspondingly reverse, thereby causing a wiping effect across said magnetically conductive zone, as lines of magnetic flux swing between respective first poles of said two electromagnets, thereby inducing electron movement within said winding and thusly generating a flow of current within said winding.
- 2.如权利要求1所述的发电机，所述擦拭效果的所述路径沿与所述磁导电区的主要轴线发生相同的轴。
- The generator as recited in claim 2 in which said electrical winding about said magnetically conductive zone comprises a helical winding.
- The generator as recited in claim 3 in which said magnetically conductive zone comprises a magnetic core.
- 5.如权利要求4所述的发电机，其特征在于，所述芯和绕组包括超导材料。
- 3.如权利要求2所述的发电机，其特征在于，所述控制装置包括扁平螺纹缠绕元件，这种扁平螺旋元件的平面被横向于所述电磁铁的所述初级轴线。
- 2.如权利要求1所述的发电机，其特征在于，所述控制装置包括在所述电磁铁的所述第二端之间的电磁路径，其中极性控制信号施加在所述路径上。
- The electrical generator as recited in claim 7 in which said electrical winding about said magnetically conductive zone comprises a helical winding.
- 9.如权利要求8所述的发电机，其中所述磁导电区域包括磁芯。
- The generator as recited in claim 8 in which said core and windings comprise a superconductive material.
- 2.如权利要求1所述的发电机，其特征在于，所述控制装置包括扁平螺旋缠绕元件，所述平螺旋元件的平面横向于所述磁路的初级轴线。

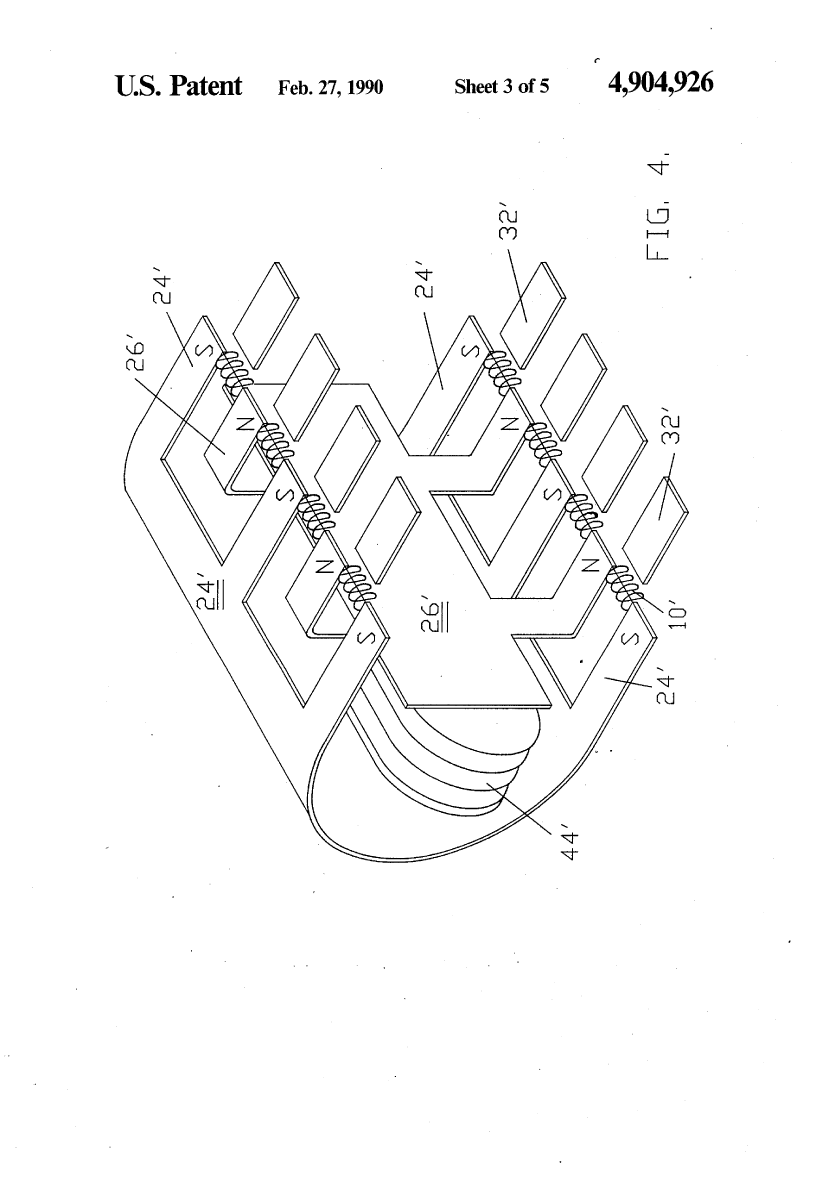

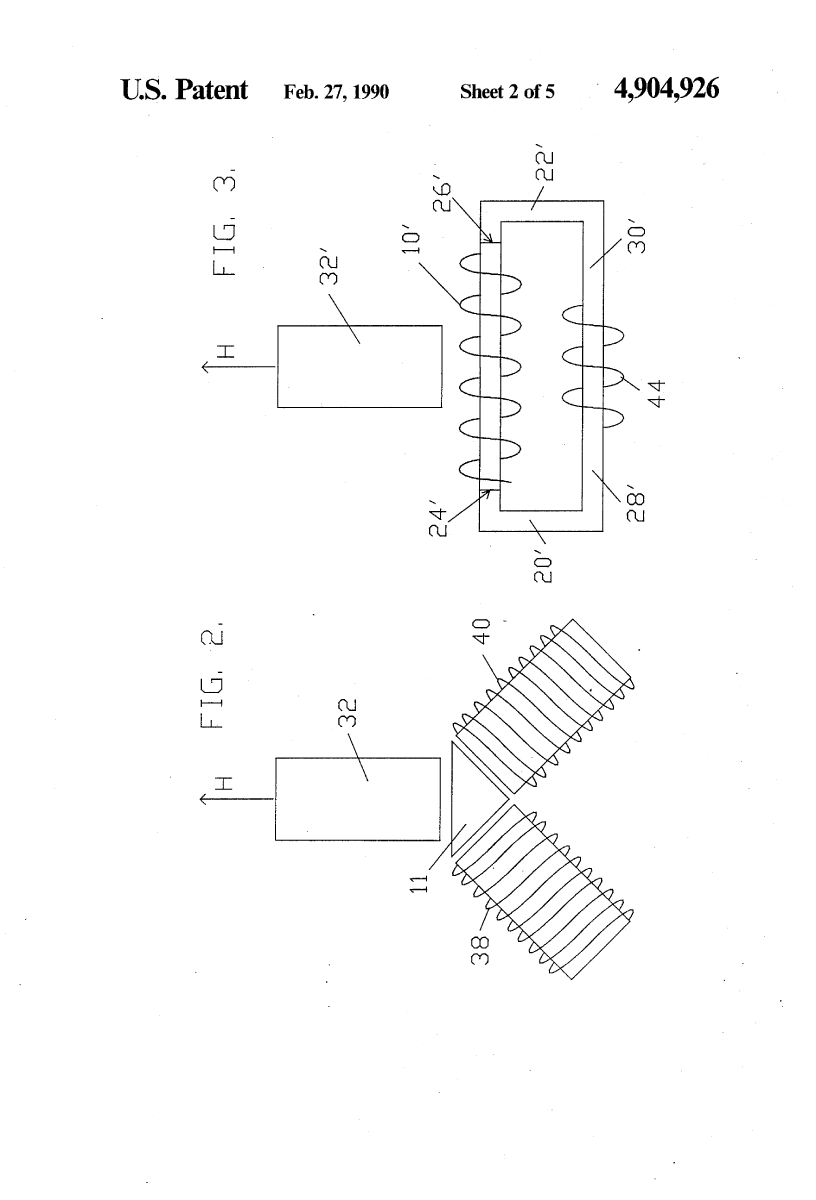

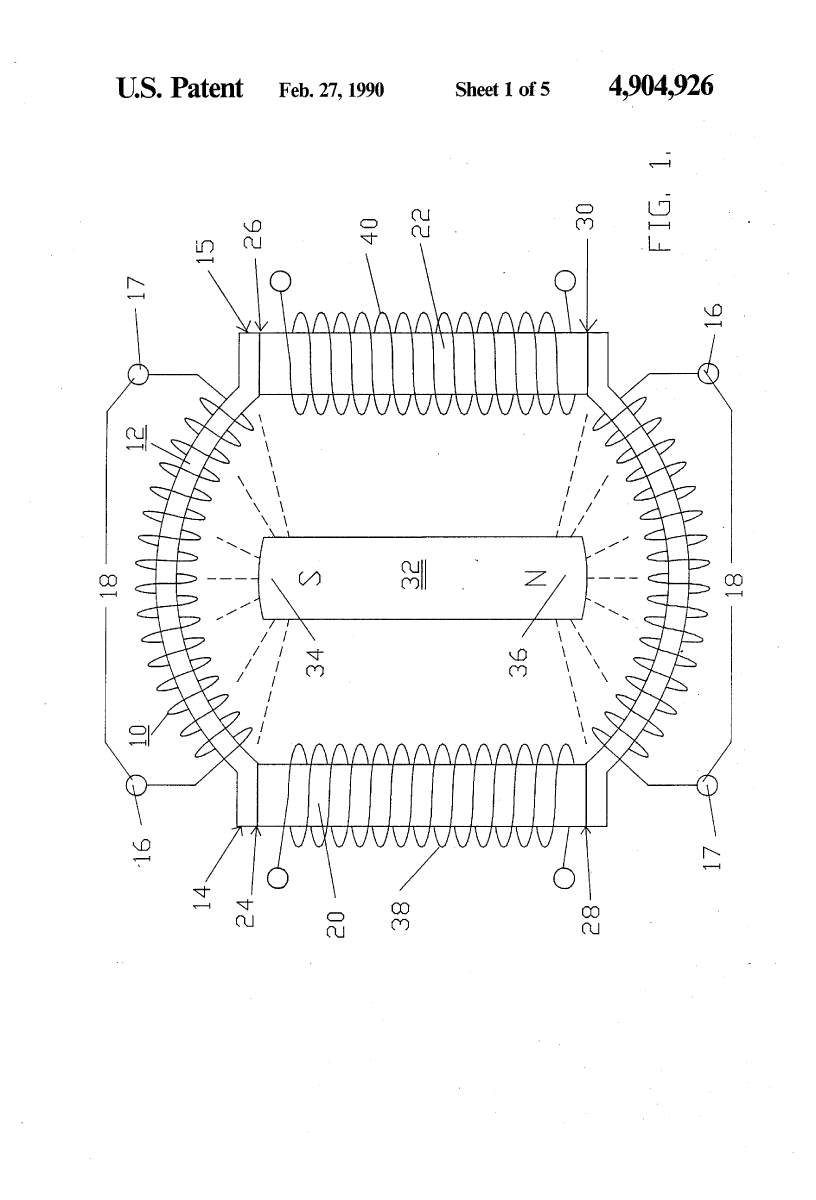

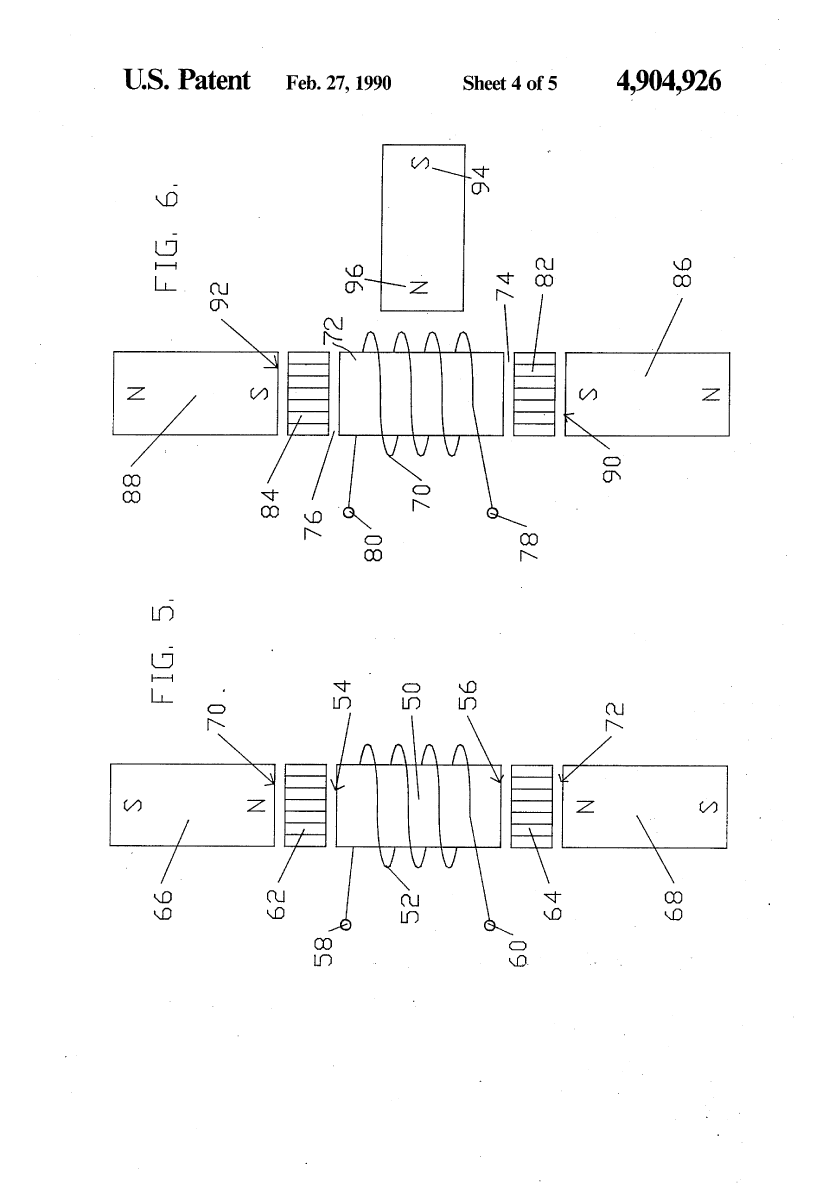

图纸
